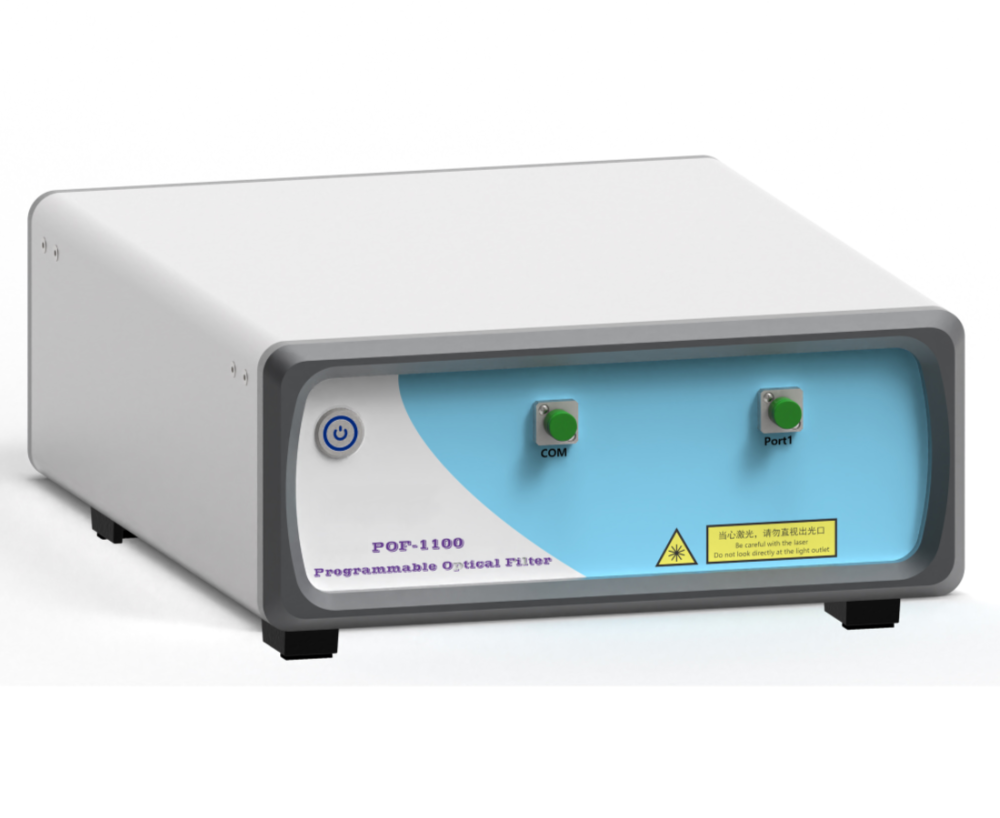

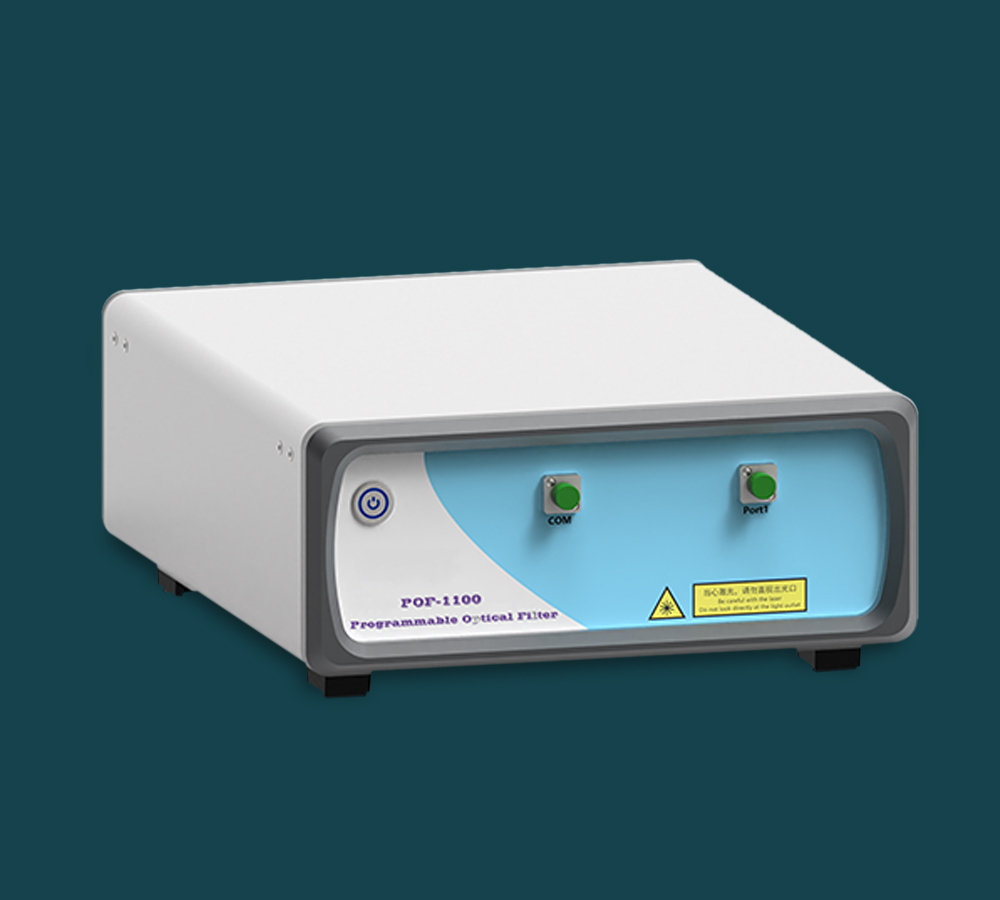

Programmable Optical Filter
POF-1100
Programmable optical filter is an instrument designed for wavelength selection. It can select the desired wavelength from numerous options, while others will be rejected.
Based on liquid crystals on silicon technology, our high-resolution programmable optical filters enable extremely fine modulations of light beams, covering C band and L band. The products can switch optical wavelength channels dynamically from any input to any output. The filters can be easilly programmed and are friendly to use.

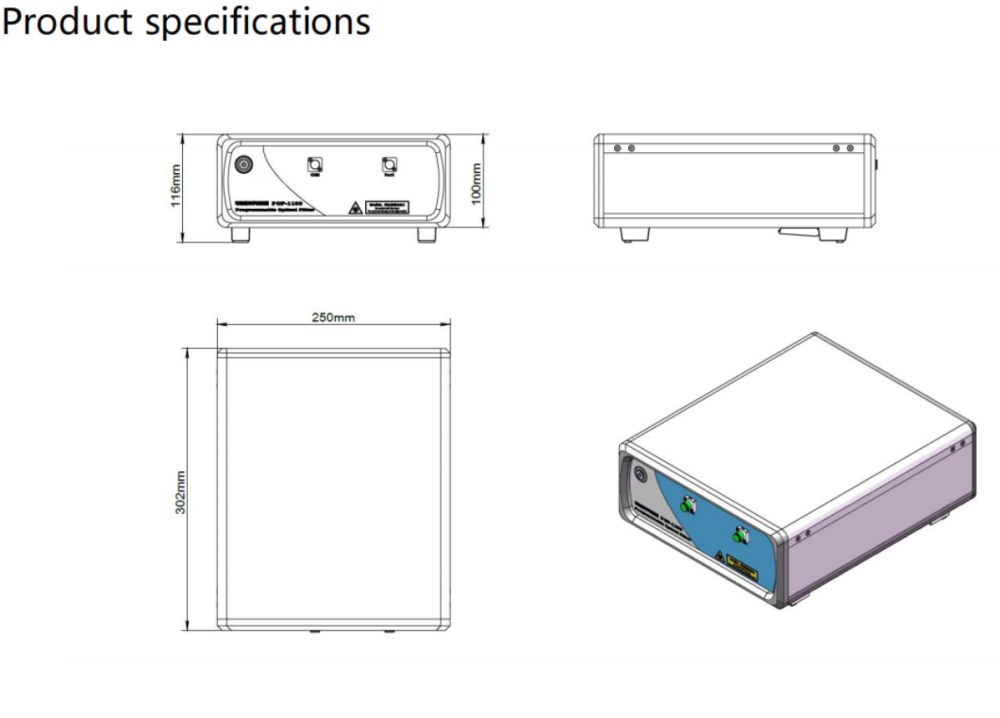

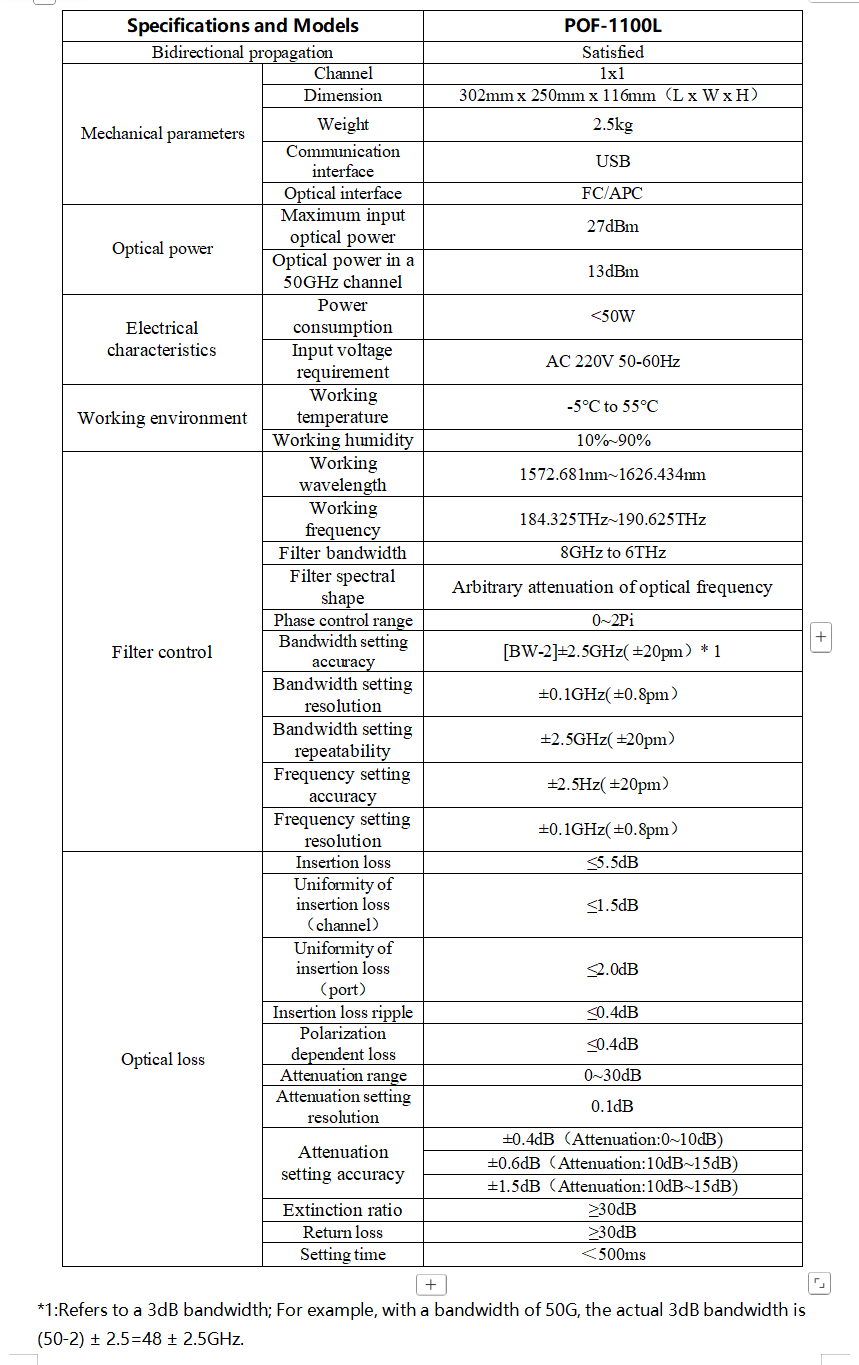

Product specifications
Functional Focus for Optical Testing Environments
The Programmable Optical Filter POF-1100 is engineered primarily for research laboratories and optical test bench applications requiring accurate wavelength management. This programmable optical filter allows engineers and researchers to select target wavelengths dynamically across C and L bands, supporting complex spectral experiments and system calibration tasks. Designed by a leading programmable optical filter manufacturer, it facilitates wavelength channel switching from any input to output with ease. Its user-friendly programming interface ensures consistent repeatability, making it suitable for environments demanding precise, flexible spectral routing and modulation. Target users include photonics researchers, optical system developers, and test engineers seeking high-level spectral control integrated within compact benchtop setups.
Advanced Technical Specifications Enabling Precise Spectral Filtering
Equipped with high-resolution LCOS technology, the POF-1100 provides precise tunable optical filter functions, allowing fine control over wavelength, bandwidth, and phase with accurate settings and rapid configuration. Operating over 1523.529 nm to 1572.681 nm wavelengths, the device features a bandwidth setting accuracy within ±2.5 GHz and optical insertion loss below 5.5 dB. Its dynamic channel switching supports 1x1 optical routing with high extinction ratios exceeding 30 dB, along with optical power handling up to 27 dBm. The compact dimensions and USB-based digital control interface offer straightforward integration into photonics test systems. This level of specification ensures dependable spectral shaping for experiments requiring exact optical filter performance under laboratory conditions.
Industrial Implementation and Photonics Research Applications
The POF-1100 programmable optical filter finds extensive application in telecommunications research, optical component calibration, and advanced photonics system prototyping. Its tunable optical filter capabilities support dynamic real-time spectral shaping vital for verification of wavelength-selective components and channel routing architectures. In optical communications or laser processing labs, it acts as a core element within test rigs for system-level validation. Its programmable nature facilitates rapid switching and reconfiguration, promoting efficient research workflows and repeatable experimental outcomes. Through integration with automated control systems, this optical tunable filter enhances operational flexibility and accelerates innovation cycles in photonics development environments.
Optimized Structural Design for Modular Integration
The POF-1100 features a compact benchtop design that efficiently houses the LCOS-based programmable optical filter, facilitating easy installation and system integration. Its modular architecture is developed by an expert programmable optical filter supplier to ensure compatibility with diverse optical test setups. The optical interface adheres to industry standards (FC/APC), while power consumption remains moderate below 50 W, supporting energy-efficient laboratory operation. The device’s mechanical dimensions enable compatibility with standard optical benches, facilitating quick deployment in laboratories. This design philosophy enhances reliability and serviceability, enabling users to incorporate tunable optical filter technology seamlessly into existing photonics instrumentation frameworks.
Enhanced Performance and User-Centric Control Features
The programmable optical filter is engineered for high performance, featuring rapid setting times under 500 ms and stable repeatability of wavelength and bandwidth configurations essential for precise spectral experiments. User accessibility is prioritized through intuitive software controls enabling easy dynamic reconfiguration without sacrificing accuracy or reliability. The device maintains low polarization-dependent loss and minimal insertion loss ripple, ensuring high signal integrity. Such performance characteristics maximize measurement accuracy and throughput in testing scenarios. By providing robust, programmable spectral management, it delivers significant operational value, enabling photonics professionals to execute complex optical filtering tasks with minimal downtime and consistent results.
Optical Test Bench Integration in Photonics Research
Within photonics research laboratories, the programmable optical filter POF-1100 operates as an essential component for wavelength-selective experiments and system calibration activities. Working alongside lasers, detectors, and modulation equipment, this optical tunable filter dynamically selects and routes optical signals across the C and L bandwidths to evaluate component and system performance. Its ability to provide repeatable, programmable channel switching optimizes test sequences and enhances experimental throughput. The filter’s fine phase and bandwidth control contribute to precise simulation of communication channel conditions, supporting validation of new photonic devices. Integration through USB and FC/APC interfaces allows seamless incorporation into test benches focused on advancing optical communications and photonics materials research.
Telecommunication Equipment Calibration and Validation
In telecommunications manufacturing and testing facilities, the POF-1100 programmable optical filter serves a critical role in calibration and validation of wavelength-selective devices such as multiplexers, demultiplexers, and transceivers. The device’s tunable optical filter functionality enables real-time spectral channel shaping and switching essential for confirming compliance with communication standards. Its stable optical insertion loss and high extinction ratio facilitate accurate measurement of device performance under controlled conditions. The filter integrates directly with automated test systems, accelerating verification workflows and ensuring consistent quality assurance. As a product supplied by a certified programmable optical filter supplier, it supports operational efficiency and supports rigorous engineering reliability required in telecom applications.
What wavelength ranges can the Programmable Optical Filter POF-1100 operate within?
Our programmable optical filter POF-1100 covers the full C-band and L-band with a working wavelength range from 1523.529 nm to 1572.681 nm. This range supports precise spectral control for varied optical testing and routing applications.
Can I customize the bandwidth and phase settings on the POF-1100?
Yes, we provide fine control over bandwidth, adjustable from 8 GHz up to 6 THz, and phase control within a 0 to 2π range. This flexibility is core to our programmable optical filter design, allowing tailored spectral filtering to meet specific experimental needs.
How do you ensure ease of integration and programming for the POF-1100 in optical test setups?
Our device features a user-friendly programming interface compatible via USB and optical FC/APC interfaces. The compact, benchtop form factor combined with stable repeatability simplifies integration into test benches and system-level verification environments.
Do you offer support for dynamic wavelength channel switching with this tunable optical filter?
Absolutely. Our POF-1100 acts as a dynamic optical tunable filter, enabling real-time wavelength channel switching from any input to any output. We support customers with programming guidance to implement reliable and repeatable channel routing in complex optical systems.
