Programmable Optical Filter Solutions

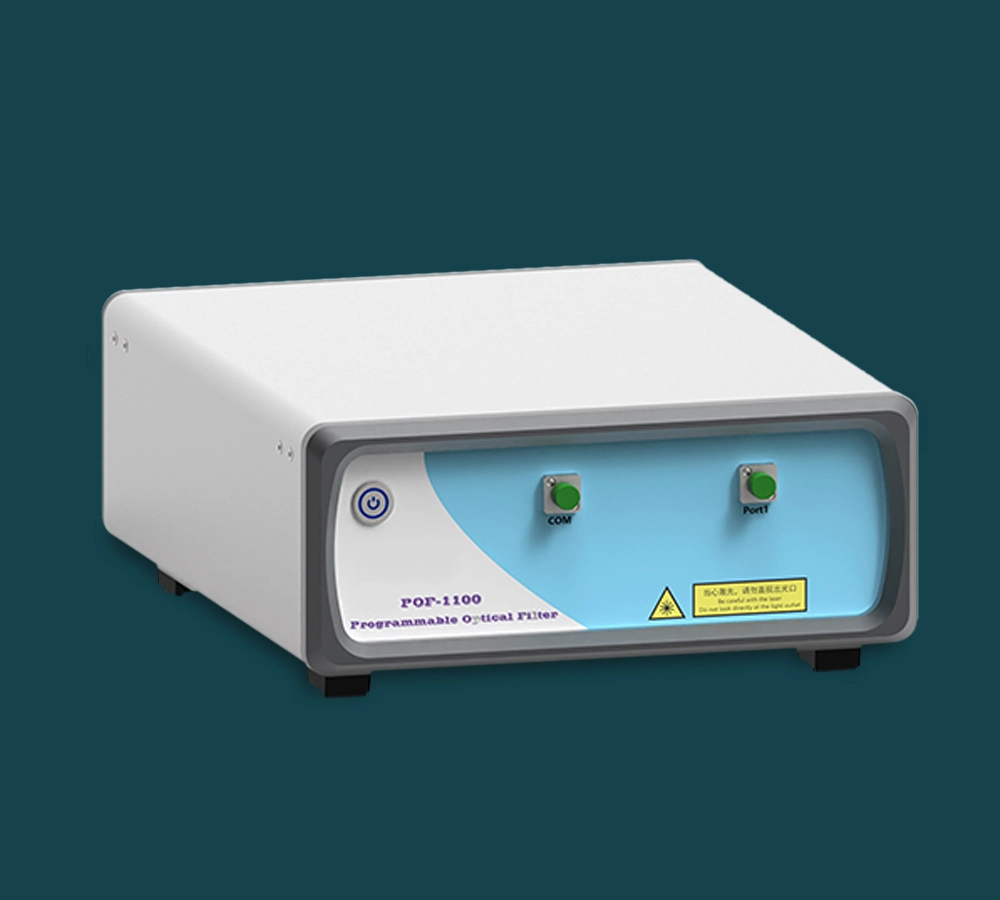

Programmable Optical Filter POF-1100L
Designed for advanced spectral shaping and dynamic channel routing. As leading optical filter manufacturers, we deliver LCOS-based solutions ensuring extreme precision for C-Band and L-Band telecommunication testbeds.
Technical Core Definition
Spectral Range
Comprehensive coverage across 1572.681 nm to 1626.434 nm, facilitating both C-band and L-band network simulations.
Bandwidth Matrix
Programmable filter bandwidth spanning from 8 GHz to 6 THz, accompanied by ±0.1 GHz precision resolution.
Signal Attenuation
Variable attenuation range from 0 to 30 dB with ultra-fast setting times of under 500 milliseconds.

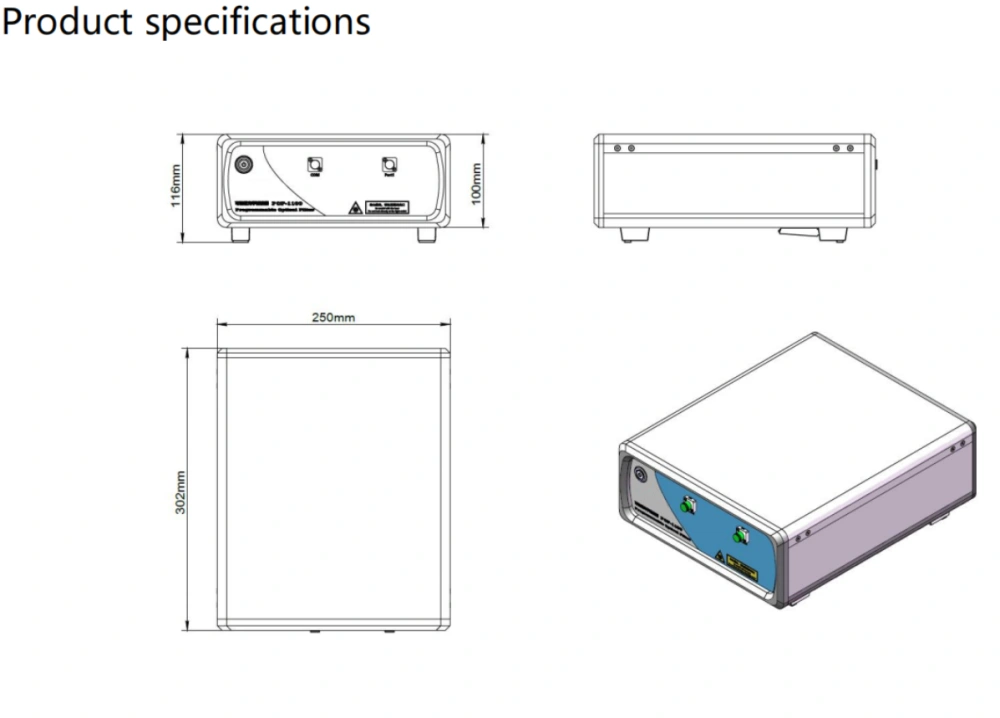

System Overview & Architecture
The POF-1100L provides exceptional phase control and spectral shaping capabilities. Engineered by a top programmable optical filter manufacturer, this instrument ensures rapid configuration under 500ms. Its robust LCOS architecture guarantees high extinction ratios (≥30 dB), making it an indispensable asset for multiplexed optical network validation and advanced telecommunication testing.
| Parameter | Specification |
|---|---|
| Core Technology | Liquid Crystals on Silicon (LCOS) |
| Extinction Ratio | ≥ 30 dB |
| Return Loss | ≥ 30 dB |
| Control Interface | USB Communication Interface |
| Optical Connector | FC/APC Standard |
Trusted by Research Facilities & Telecom Infrastructures
"The sub-500ms configuration time and precise attenuation control significantly accelerated our channel routing experiments. A highly reliable testing instrument."
"Integrating the POF-1100L into our telecommunication testbed was seamless. The USB control interface and continuous operational reliability are outstanding."
"Finding a reputable manufacturer capable of scaling up production while maintaining strict spectral calibration standards was crucial for our supply chain."
Industry Insights & Knowledge Base
Technology
Programmable Optical Filter Solutions for Efficient Channel Routing in Optical Networks
Application
Advantages of C-Band Programmable Optical Filters in High-Resolution Spectral Shaping
Product Matrix
Navigating Product Offerings for L-Band Programmable Optical Filter Devices
Frequently Asked Questions
What is the MOQ for the POF-1100L testing equipment?
Our standard MOQ for the POF-1100L is 1 unit for laboratory evaluation. For large-scale testbed deployments, we accommodate bulk scheduling.
What is the standard lead time for order processing?
Standard configurations are typically dispatched within 4-6 weeks. Custom spectral shaping requests may extend the production timeline.
Does the equipment comply with international lab standards?
Yes, the system strictly complies with CE and RoHS standards for laboratory and industrial safety.
How does the LCOS technology maintain signal fidelity across bands?
The phase-only liquid crystal technology ensures high optical isolation and an extinction ratio of ≥30 dB, minimizing signal degradation across the entire C and L bands.
Can the filter be integrated into custom automated setups?
The device features a standard USB interface coupled with comprehensive software, allowing programmable attenuation (0-30 dB) and bandwidth control for custom integrations.
What calibration and technical support are provided?
We provide comprehensive operational troubleshooting, regular software updates, and rigorous recalibration services to ensure long-term laboratory precision.
