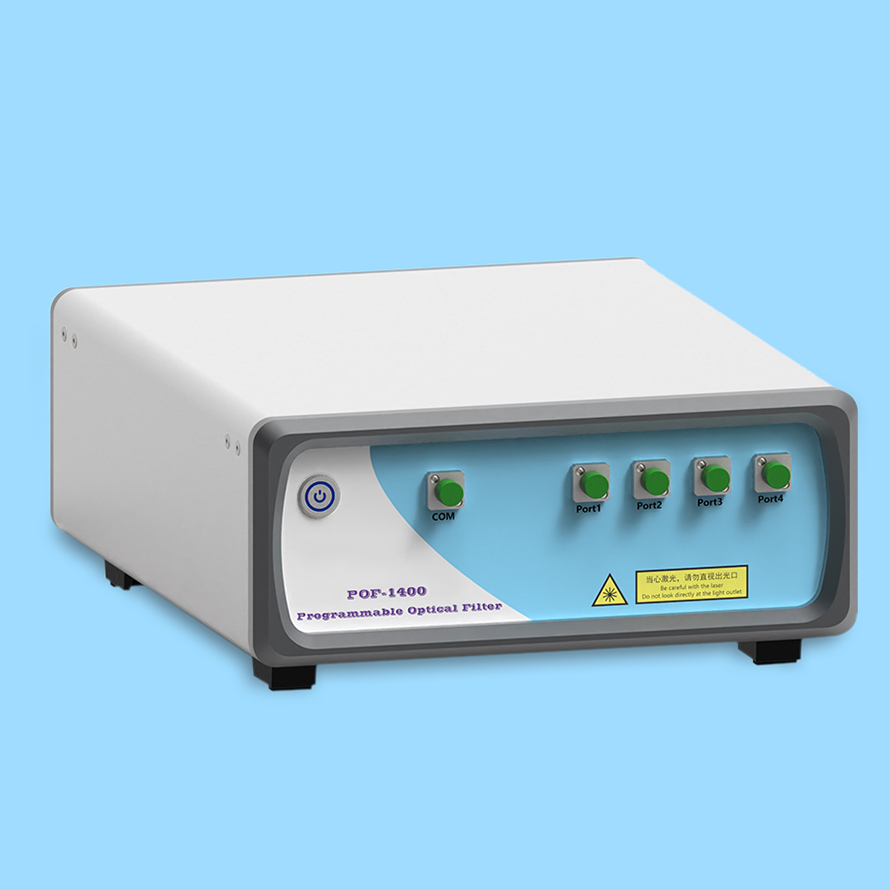

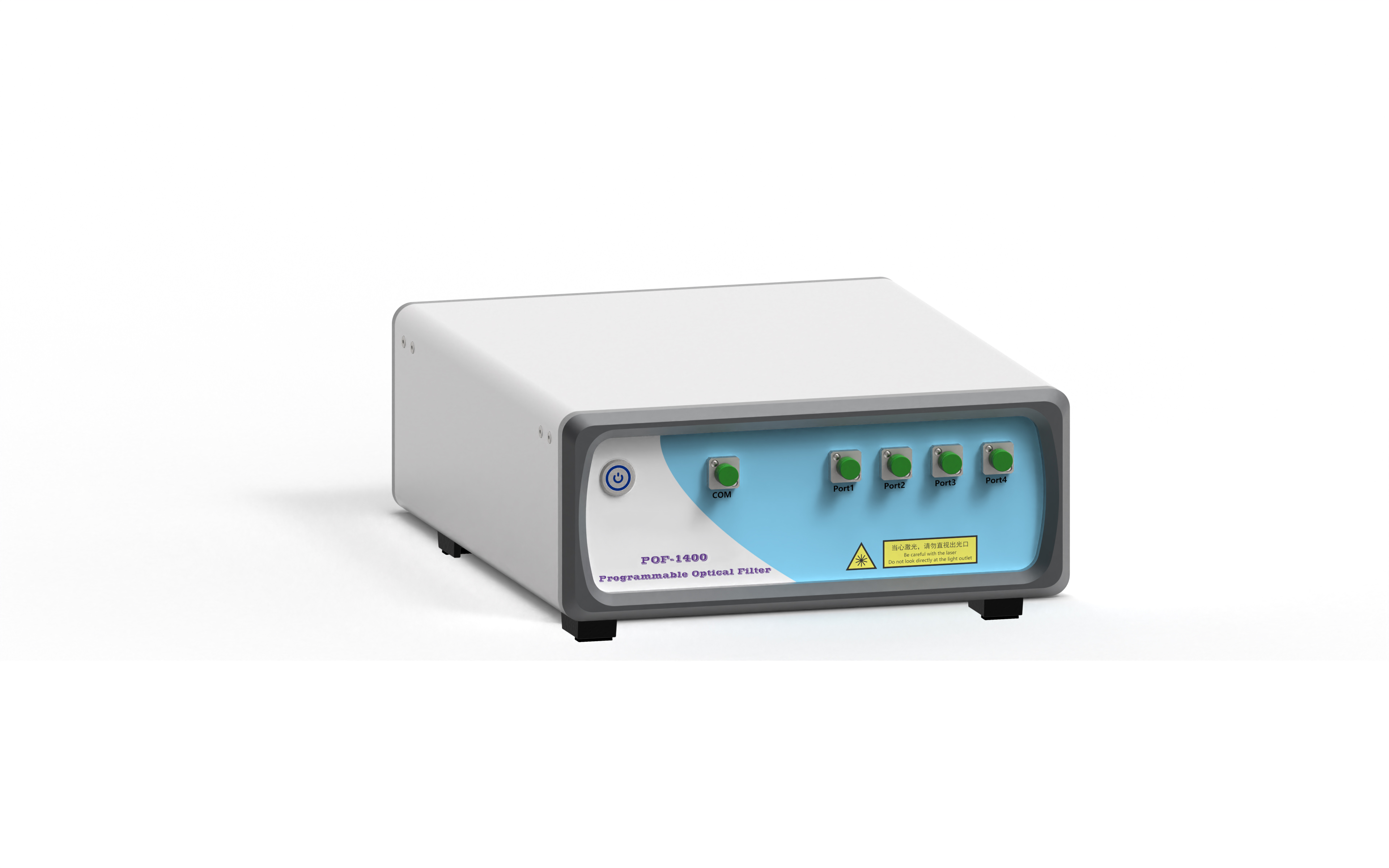

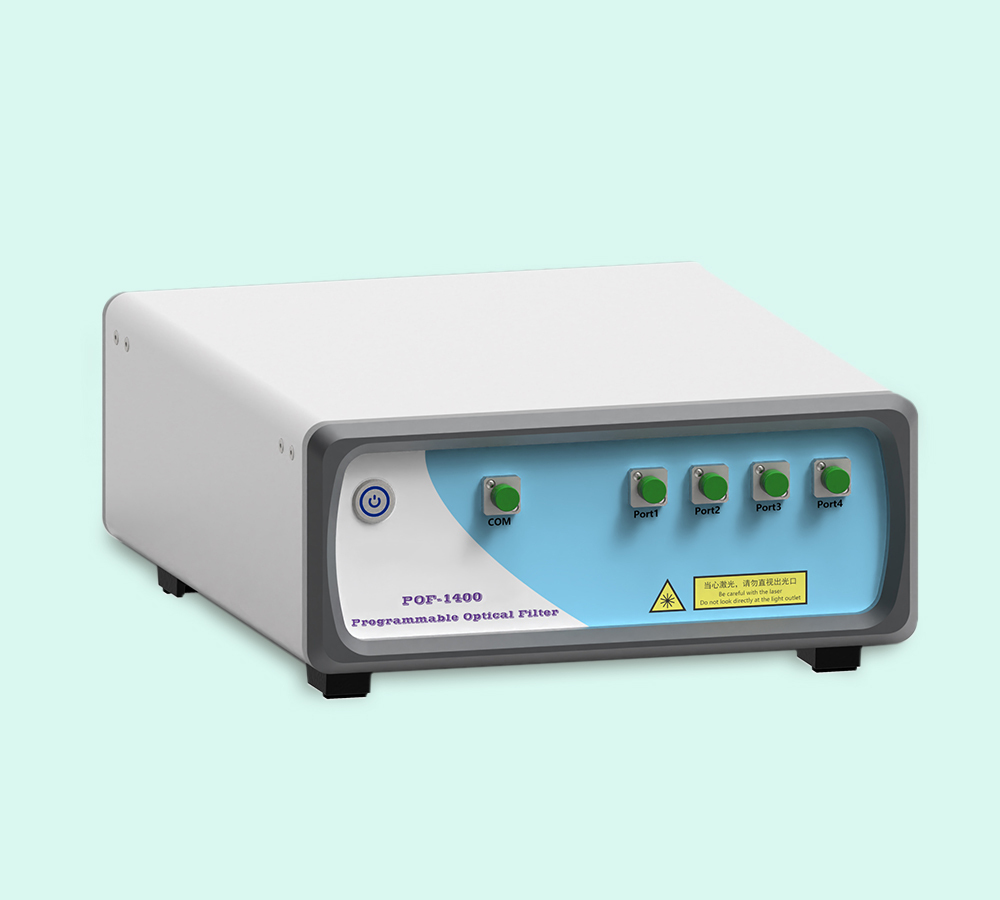

Programmable Optical Filter POF-1400L

Product Description

Targeted Applications and User Base for High-Precision Optical Filtering

The POF-1400L programmable optical filter serves engineers and researchers requiring fine wavelength selectivity across C band and L band spectral regions. This solution is offered by an established optical filter manufacturer to meet demands in sophisticated optical communications testbeds, laboratory setups, and prototype system developments. It enables dynamic routing of optical signals from one input to multiple outputs, making it suitable for users focused on spectral shaping and tunable filtering in LCOS-based architectures, supporting precise experimental control and system validation requirements.

Advanced Specifications and Technical Capabilities of the Filter

Based on liquid crystals on silicon technology, the POF-1400L delivers programmable filtering with high spectral resolution and accuracy. Operating over wavelengths from 1572.681nm to 1626.434nm, it supports a 1x4 channel configuration with bandwidth adjustable between 8GHz and 6THz. Key measurable specifications include a filter bandwidth setting accuracy of 卤2.5GHz and an insertion loss below 5.5dB. The device is equipped with USB and FC/APC interfaces, enabling straightforward integration into test environments. Its low power consumption and compact design make it viable for continuous lab use with stable performance under diverse environmental conditions.

Integration and Industry-Relevant Benefits Across Optical Systems

The product enhances capabilities in optical communications, laser processing, and photonics research by enabling real-time dynamic spectral control and channel switching. Laboratories and engineering teams benefit from its precise attenuation range and phase control, making it ideal for validating filter behaviors and tuning spectral profiles. Its functionality supports calibration of optical transceivers and spectral shaping in programmable optical networks. The widespread compatibility with C band programmable optical filter and L band programmable optical filter applications underscores its versatile value in development workflows and testbed infrastructures within high-tech optical industries.

Product Advantages

Structural and Design Benefits Facilitating Integration

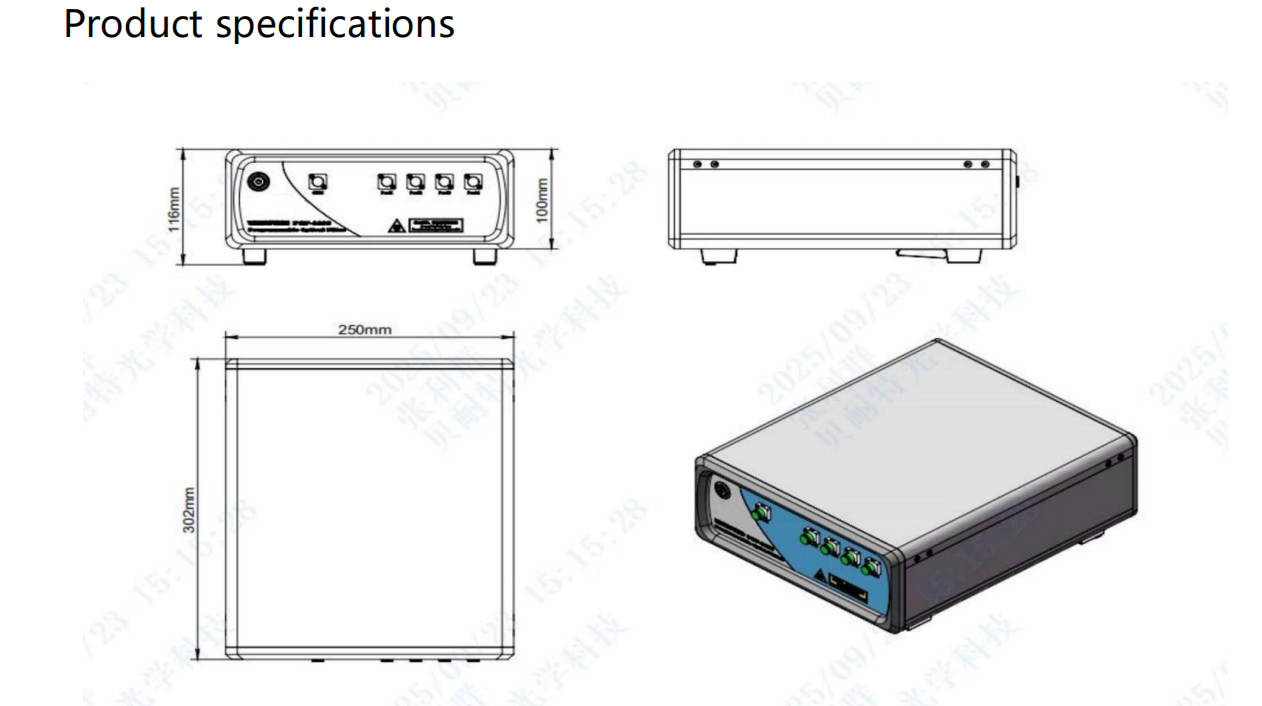

The POF-1400L features a compact footprint measuring 302mm by 250mm by 116mm and weighs 2.5kg, facilitating integration into various optical testbed and prototype configurations. Designed by a recognized programmable optical filter manufacturer, its LCOS-based modular structure supports agile channel routing with high-channel uniformity metrics. The incorporation of USB control and FC/APC optical interfaces ensures compatibility with standard lab instruments, allowing synchronized operation within complex optical systems. This streamlined mechanical and electronic design enhances system scalability and reliability in demanding experimental setups.

Performance Characteristics Enhancing Usability and Measurement Precision

User-friendly programming interfaces combined with rapid setting times under 500ms accelerate experimental cycles of wavelength selection and switching. The filter achieves insertion loss ripple below 0.4dB and maintains polarization dependent loss under 0.4dB, supporting accurate spectral measurements. Attenuation settings are finely resolvable at 0.1dB increments, granting precise power control essential for optical communications testing. These performance attributes reflect the values emphasized by the programmable optical filter manufacturer to deliver optimized usability, reduced downtime, and improved repeatability for technical users operating in C band programmable optical filter and L band programmable optical filter environments.

Programmable optical filter is an instrument designed for wavelength selection. It can select the desired wavelength from numerous options, while others will be rejected.

Based on liquid crystals on silicon technology, our high-resolution programmable optical filters enable extremely fine modulations of light beams, covering C band and L band. The products can switch optical wavelength channels dynamically from any input to any output. The filters can be easilly programmed and are friendly to use.

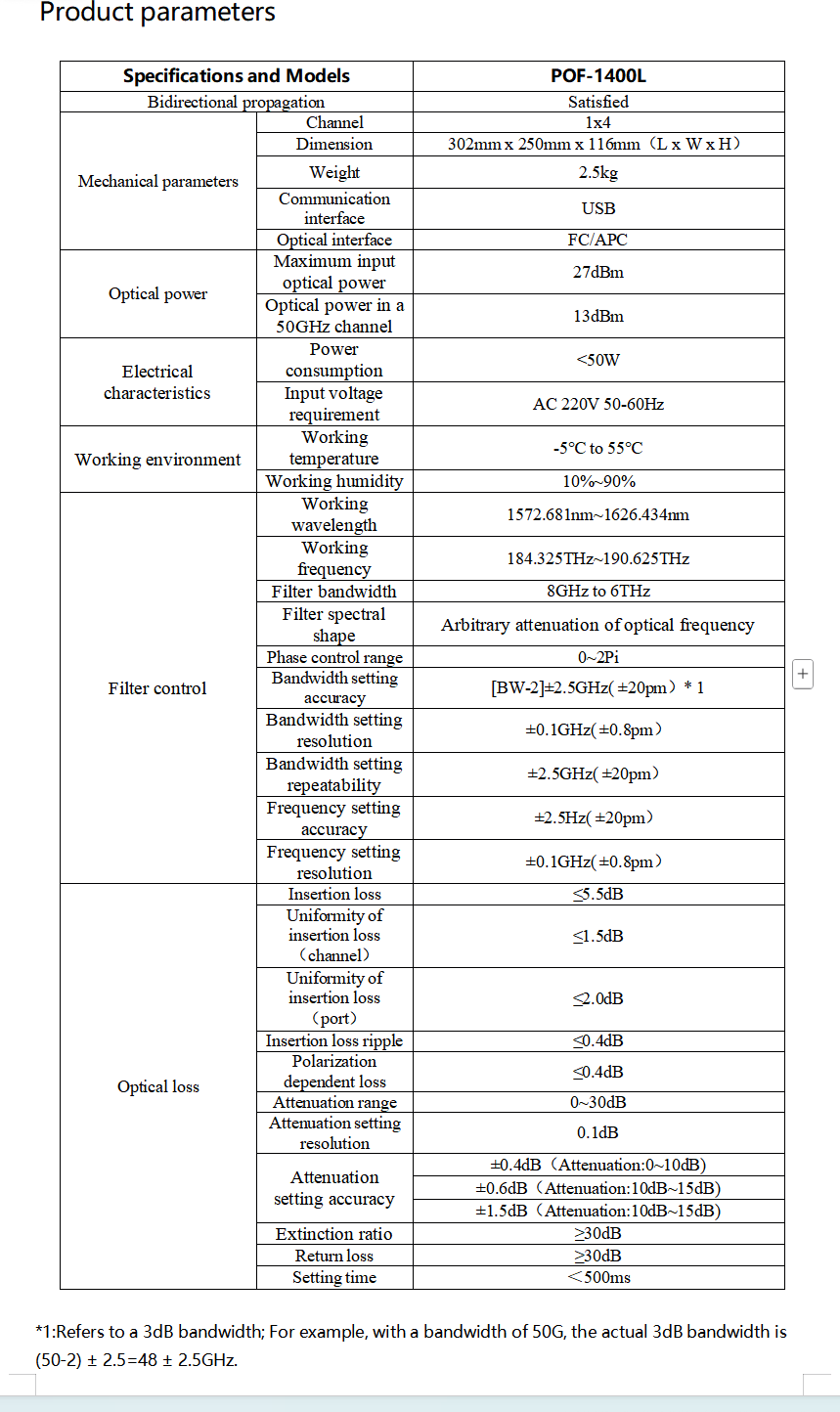

Product parameters

Use Scenarios

Precision Wavelength Selection in Research and Testbed Environments

In photonics laboratories and advanced research centers, the POF-1400L programmable optical filter functions as an indispensable component for wavelength selection experiments. Operating across both C band and L band spectral ranges, it enables experimenters to isolate and modulate specific wavelengths dynamically with programmable control. This role is critical for validating LCOS-based optical architectures and conducting spectral filtering trials under precise attenuation and phase modulation settings. The device seamlessly integrates into bench-top measurement workflows, supporting real-time testing and iterative refinement of optical transceiver characteristics and spectral shaping strategies.

Dynamic Channel Switching within Optical Communication Networks

Telecommunication labs and prototype development settings utilize the POF-1400L for dynamic wavelength channel routing, optimizing signal management in optical network simulations and system validations. As a 1x4 channel programmable optical filter, it facilitates real-time input-to-output switching with fine spectral control, supporting compliance with network standards and testing interoperability factors. Its adaptable bandwidth and low insertion loss parameters make it well-suited for scenarios requiring fast, precise channel reshaping and signal attenuation adjustment. By integrating with existing network testing platforms, it enables comprehensive evaluation of tunable filter performance in live-like optical communication environments.

FAQ

What wavelength ranges are supported by your programmable optical filter?

Our programmable optical filter POF-1400L operates across the C band and L band, specifically from 1572.681 nm to 1626.434 nm. This broad range covers typical wavelengths used in optical communications, enabling precise wavelength selection and filtering for advanced lab and testbed applications.

Can the POF-1400L be customized for specific research needs?

We offer flexible programming features in the POF-1400L, allowing you to dynamically switch optical wavelength channels from any input to any output. Our team supports integration of the programmable optical filter into custom testbeds and prototype systems to meet your exact spectral shaping and modulation requirements.

How is the POF-1400L controlled and integrated into existing optical setups?

The POF-1400L is controlled via a USB interface and features FC/APC optical connectors for seamless integration. We ensure user-friendly, in-house developed software allows easy programming of the filter settings, facilitating quick setup and adjustments within lab environments and optical communication systems.

What support do you provide for installation and maintenance of your optical filters?

We provide full technical guidance to assist you with installation, programming, and ongoing maintenance of your optical filter systems. Our experienced team ensures reliable operation within specified temperature and humidity ranges, helping you optimize device longevity and performance in your optical research or production workflow.
