SLM-Spec-OPM-V1AP

Product Description

Precision Wavefront Control for Optical Experts

The H series liquid crystal spatial light modulator is designed for researchers and engineers requiring programmable light modulation solutions. As a product from an established spatial light modulator manufacturer, this lcos slm offers both amplitude and phase modulation capabilities. It targets users developing precise beam shaping, holography, and wavefront correction systems in academic labs, industrial R&D, and optical communications. Its compatibility with digital control pipelines supports complex experimental setups and system integration workflows.

Advanced Technical Specifications Enabling Reliable Modulation

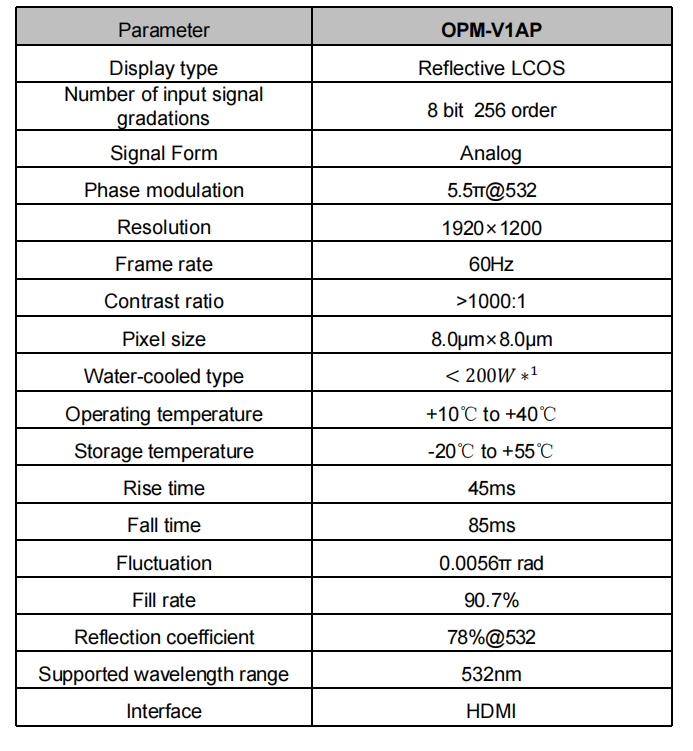

Featuring a reflective LCOS display with Twisted Nematic liquid crystals, this lcos manufacturer product delivers a resolution of 1920×1200 pixels at 60 Hz with an 8.0 μm pixel pitch. It achieves phase modulation of up to 5.5π radians at 532 nm wavelength and contrast ratios above 1000:1, providing high fidelity wavefront shaping. The water-cooled design draws less than 200 W, maintaining thermal stability within an operating range of +10℃ to +40℃. Its HDMI interface ensures straightforward digital drive compatibility for system-level deployments requiring precise optical modulation control.

Applicability Across Diverse High-Precision Optical Fields

This spatial light modulator slm solution finds value in varied sectors such as laser processing prototyping, optical communications testing, and digital holography demonstrations. Its phase-only modulation feature supports advanced holographic displays and beam steering in research instruments. Educational institutions also utilize this liquid crystal spatial light modulator for training in optics laboratories. The comprehensive design enables integration into complex optical testbeds, improving accuracy and control in system-level experiments and industrial applications alike.

Product Advantages

Systematic Design Focused on Robust Integration

The H series incorporates a reflective LCOS modulator with Twisted Nematic liquid crystal technology engineered by a dedicated lcos manufacturer specializing in spatial light modulators. Its modular HDMI interface design facilitates seamless integration into existing optical setups and software environments. The compact water-cooled structure maintaining power consumption under 200W supports stable long-term operation. This optimized structural design enhances system reliability while offering adaptability for customized wavefront control applications typical in advanced laboratory and industrial environments.

Enhanced Operational Performance and Engineering Efficiency

Offering phase and amplitude modulation with high resolution and low phase fluctuation, the spatial light modulator slm ensures precise optical control crucial for demanding wavefront engineering tasks. Its rise/fall time parameters (45 ms/85 ms) support dynamic modulation at 60 Hz, important for real-time experimental applications. The device’s user interfaces and controlled environment specifications reduce integration complexity and downtime, maximizing throughput and enabling engineers to deploy complex light modulation protocols with confidence and repeatability.

Spatial light modulators are based on liquid crystal microdisplay technology (digital

addressing), using Twisted Nematic Liquid Crystalline Materials, and utilizing the

birefringence effect of twisted nematic liquid crystals ,which enables the precision

modulation of the amplitude, phase and power of the incident beam.

This ability of the precision control to the phase of the wavefront makes spatial light

modulators become ideal choice for applications such as beam shaping and phase

correction, educational research, biomedical imaging, and digital holographic experiments.

Configuration

Use Scenarios

Advanced Optical Communications Testing Platforms

In the optical communications industry, the H series liquid crystal spatial light modulator plays a pivotal role in developing and validating wavefront control techniques that enhance signal integrity. Integrated into testbeds, it precisely modulates optical signals to test hardware performance under varied conditions. The lcos slm’s fine phase modulation and stable operation under thermal loads ensure compliance with rigorous telecom standards while enabling flexibility for iterative experimental configurations. This capability aids engineers in optimizing lasers and photonics components, streamlining development cycles in high-speed optical networks.

Laser Processing and Wavefront Engineering Development

The device serves as a critical component in laboratories focused on laser processing and material prototyping, where beam shaping and quality control are paramount. Its programmable modulation characteristics allow precision steering and correction of laser beams, improving process accuracy and repeatability. The H series, developed by a prominent spatial light modulator manufacturer, integrates seamlessly with industrial laser systems, enabling real-time adaptive control. This ensures the modulation matches processing demands, reducing waste and operational risks by maintaining consistent beam profiles during complex manufacturing or experimental procedures.

FAQ

What resolution and frame rate does the Liquid Crystal Spatial Light Modulator-H series offer?

Our liquid crystal spatial light modulator provides a high resolution of 1920×1200 pixels at a 60 Hz frame rate. This combination ensures smooth, precise phase and amplitude modulation suitable for demanding optical experiments and industrial applications.

Can you customize the Liquid Crystal Spatial Light Modulator-H series for specific industrial needs?

We offer customization options tailored to your project requirements. Leveraging our expertise as an experienced spatial light modulator manufacturer, we can adjust parameters related to modulation capabilities, interface control, or thermal management to fit your application.

What type of interface does the H series support for system integration?

The H series supports a straightforward HDMI interface with 8-bit analog grayscale signals (256 levels). This compatibility makes it easy to integrate our LCOS SLM into existing digital control pipelines and experimental setups with minimal configuration.

How is the device cooled, and what are the power requirements for stable operation?

Our H series modulator features a water-cooled design consuming less than 200 W, maintaining stable performance in laboratory conditions. It operates reliably within +10℃ to +40℃ and can be safely stored between -20℃ and +55℃ for long-term usage.
