SLM-Spec-PAF380

Product Description

Functional Positioning and Target Users of the SLM-Spec-PAF380

The SLM-Spec-PAF380 from the P-series is engineered as a high-precision spatial light modulator, focusing on applications requiring dynamic wavefront control and advanced phase modulation. Its primary users include research laboratories, photonics engineers, and optical system integrators needing reliable modulation in experimental and industrial settings. As an slm spatial light modulator, it supports analog 8-bit grayscale inputs ensuring precise amplitude and phase control. This device is ideal for professionals engaged in beam shaping, digital holography, or adaptive optics who require a compact solution capable of maintaining stable operation across defined temperature ranges.

Technical Features and Measurable Specifications of SLM-Spec-PAF380

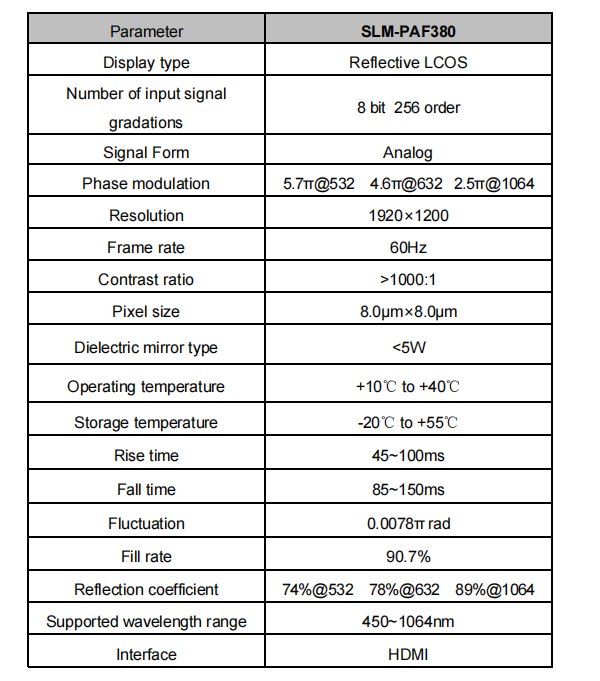

Utilizing reflective LCOS technology, this lcos spatial light modulator delivers a native resolution of 1920×1200 pixels with a pixel pitch of 8.0 μm, enabling high-fidelity and smooth phase modulation. The system supports multi-wavelength phase modulation levels of up to 5.7π at 532 nm, 4.6π at 632 nm, and 2.5π at 1064 nm, making it compatible with common laser sources between 450 and 1064 nm. It operates with a 60 Hz frame rate and features rapid rise and fall times of 45–100 ms and 85–150 ms respectively. With a contrast ratio exceeding 1000:1 and an efficient dielectric mirror, integration is facilitated through an HDMI interface designed for seamless incorporation into complex optical setups.

Industry Applications and Real-World Integration Benefits

As a versatile spatial light modulator supplier solution, the SLM-Spec-PAF380 finds application in key photonics domains such as adaptive optics for phase correction, digital holography for research visualization, and laser processing demonstrations. Its ability to modulate phase with high precision enhances experimental beam shaping, metrology, and biomedical imaging processes. The device supports comprehensive system workflows by enabling adaptive wavefront control, thus optimizing optical system performance and improving measurement accuracy. It serves as a critical component for engineers designing next-generation optical communication prototypes, offering proven reliability and operational flexibility.

Structural and Design Advantages of the SLM-Spec-PAF380

The SLM-Spec-PAF380 embodies a robust design based on reflective LCOS technology, facilitating compact integration within existing optical frameworks. Its modular architecture enables straightforward installation, featuring a dielectric mirror with low power consumption (<5W) and an HDMI interface that supports analog 8-bit grayscale signal input. The pixel pitch of 8.0 μm with a fill factor above 90% supports fine spatial resolution necessary for complex beam shaping. The device is developed by a reputable spatial light modulator manufacturer with over a decade of expertise in photonics material science and chip fabrication processes, ensuring consistent quality and durability across operating temperatures.

Performance, Usability, and User Value Delivered by this Spatial Light Modulator

Designed for operational efficiency, the slm spatial light modulator exhibits excellent phase modulation stability with phase fluctuations minimized to 0.0078π radians. Its fast response times enable dynamic wavefront adjustments compatible with real-time adaptive optics applications. User-friendly integration is assured via a standard HDMI interface, reducing system complexity for engineers. Additionally, the device’s wide operating temperature range and high contrast ratio augment reliability during extended experimental runs. This solution delivers precise control and scalability, meeting stringent requirements in demanding optical engineering deployments provided by a consistent spatial light modulator supplier.

Spatial light modulators are based on liquid crystal microdisplay technology (digital

addressing), using Twisted Nematic Liquid Crystalline Materials, and utilizing the

birefringence effect of twisted nematic liquid crystals ,which enables the precision

modulation of the amplitude, phase and power of the incident beam.

This ability of the precision control to the phase of the wavefront makes spatial light

modulators become ideal choice for applications such as beam shaping and phase

correction, educational research, biomedical imaging, and digital holographic experiments

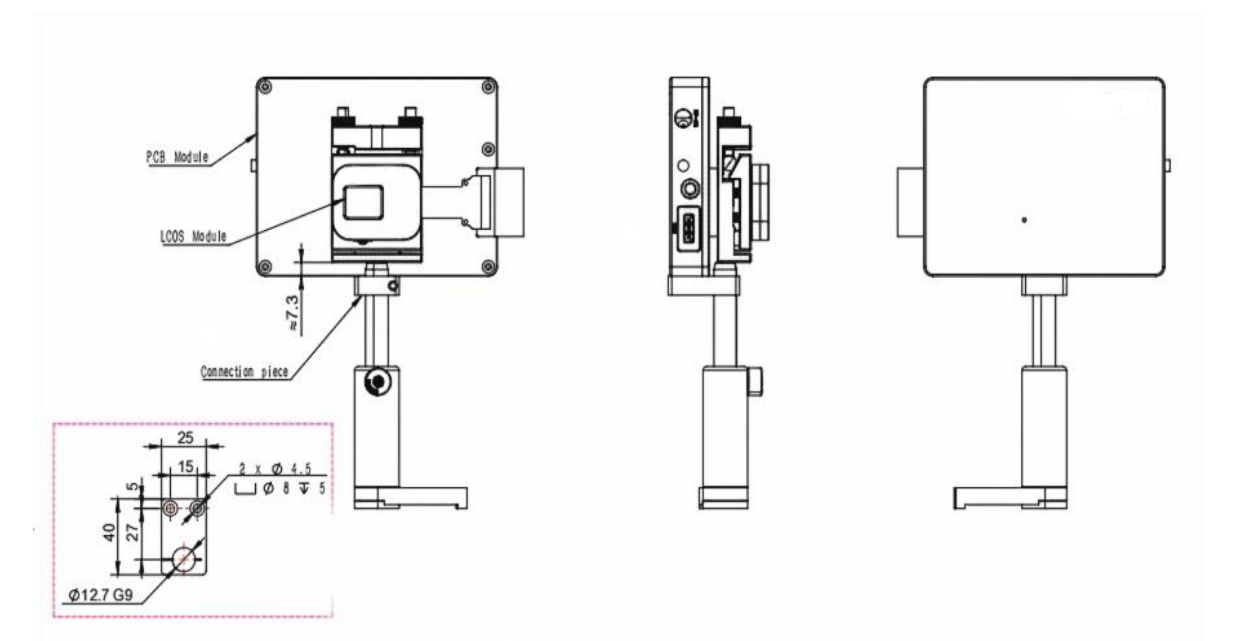

Configuration

Beam Shaping and Adaptive Optics Applications in Research Environments

In photonics research laboratories, the SLM-Spec-PAF380 serves as a critical element for beam shaping by precisely modulating the phase across its aperture. It enables adaptive optics systems to compensate for wavefront distortions, enhancing laser beam quality and improving system resolution. The device’s compatibility with multi-wavelength sources from 450 to 1064 nm allows flexible deployment across various experimental configurations. Its rapid rise and fall times facilitate real-time adjustments within feedback loops, supporting dynamic compensation in advanced optical setups. The compact design and HDMI interface allow seamless integration with existing control electronics, making it an essential lcos spatial light modulator for research engineers focusing on precision optics.

Role in Optical Communications Prototyping and Industrial Laser Processing

Within optical communications and laser processing industries, the SLM-Spec-PAF380 supports prototype development for complex wavefront modulation schemes and beam shaping required in high-speed data transmission and material processing. Its high grayscale fidelity and contrast ratio enable accurate phase patterns critical for signal integrity and process precision. Operating efficiently over a broad temperature range ensures compliance with industrial environment requirements. The device’s robust reflective LCOS structure and standard HDMI interface facilitate quick deployment in manufacturing or laboratory test beds. As a trusted spatial light modulator supplier product, it integrates with optical communication modules and laser systems to optimize throughput and enable experimental validation of adaptive modulation techniques.

FAQ

What interface does the SLM-Spec-PAF380 use for integration?

Our SLM-Spec-PAF380 uses an HDMI interface to ensure straightforward integration into existing optical systems. This compatibility facilitates easy setup and effective communication with your control equipment, making it ideal for seamless deployment in various industrial applications including laser processing and optical communications.

Can you customize the SLM-Spec-PAF380 for specific wavelength requirements?

We offer the SLM-Spec-PAF380 with multi-wavelength phase modulation covering 450–1064 nm, including 532 nm, 632 nm, and 1064 nm. If you require specific wavelength adjustments or optimizations, please contact us to discuss tailored solutions from your trusted spatial light modulator supplier.

What support do you provide for installation and calibration of the spatial light modulator?

Our team provides technical guidance for the installation and calibration of the SLM-Spec-PAF380, helping you optimize wavefront control and phase modulation performance. We ensure your spatial light modulator manufacturer experience is backed by expert advice for smooth integration into your optical setup.

What are the recommended operating and storage conditions for optimal performance?

We recommend operating the SLM-Spec-PAF380 between +10℃ and +40℃, with storage temperatures from -20℃ to +55℃ to maintain device stability and longevity. Proper environmental control ensures consistent phase modulation and reliable performance throughout the device's lifecycle.
