SLM-Spec-PAA380

Product Description

Advanced Modulation Solution for Optical Engineers

The SLM-Spec-PAA380 serves as a critical component for researchers, engineers, and educational institutions requiring fine wavefront manipulation capabilities. As a premium lcos spatial light modulator, it provides amplitude, phase, and beam power modulation through digital addressing, meeting the stringent demands of optical labs and calibration setups. System integrators and optical designers benefit from its compact form factor and compatibility with advanced control systems supplied by a trusted spatial light modulator manufacturer.

Precision Technical Specifications Enabling Optimal Performance

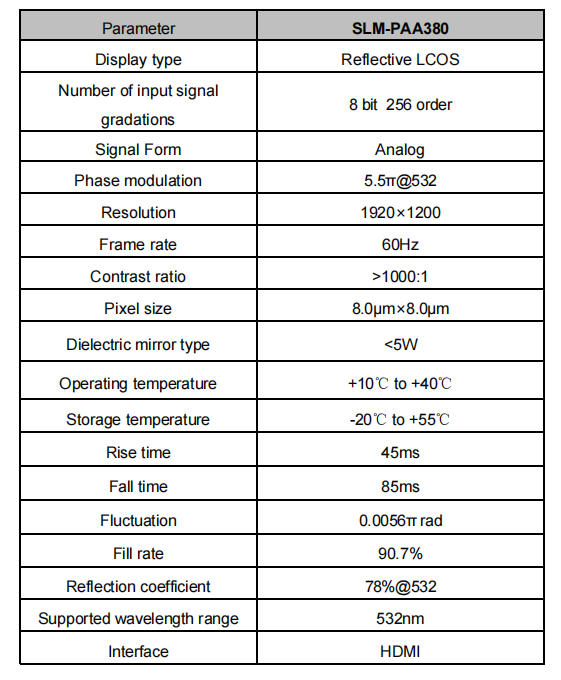

Featuring a native resolution of 1920×1200 pixels and an 8-bit input signal format, this slm spatial light modulator delivers 256 discrete modulation levels. The reflective LCOS display offers a phase modulation range of up to 5.5π at 532 nm wavelength with a high contrast ratio exceeding 1000:1. Key parameters such as pixel pitch of 8.0 μm, a frame rate of 60 Hz, and a fill rate of 90.7% ensure high-fidelity phase control and stability across diverse environmental conditions. The device’s HDMI interface supports straightforward integration into existing optical setups provided by a reliable spatial light modulator supplier.

Integration Across Optics and Photonics Applications

This spatial light modulator is highly suited for use in beam shaping, digital holography, and phase correction experiments within academic and industrial research environments. It supports complex optical communications testbeds and laser processing modulation due to its robust phase fidelity and fast response times. OEM system developers also leverage its advanced modulation capabilities for biomedical imaging prototype development, making it a versatile element in multi-disciplinary photonics workflows facilitated by an experienced spatial light modulator manufacturer.

Product Advantages

Robust Design and Integration Capabilities

The SLM-Spec-PAA380 embodies a reflective LCOS display design optimized for high-resolution spatial modulation. Its modular architecture and HDMI digital interface facilitate efficient system integration into complex optical platforms. The pixel arrangement with an 8.0 μm pitch and stable dielectric mirror ensures low power consumption even under continuous operation. Such engineering precision, provided by an established spatial light modulator supplier, enhances overall system reliability and enables scalable deployment within advanced laboratory settings.

Superior Performance and Operational Efficiency

This lcos spatial light modulator achieves high contrast and a broad phase modulation range, critical for precision beam shaping tasks. The device’s operational temperature range of +10°C to +40°C and rapid rise/fall times of 45 ms and 85 ms respectively, contribute to consistent performance in critical experimentation conditions. The user-friendly HDMI interface streamlines the setup process, providing optical engineers with enhanced control precision and reducing system downtime. This results in measurable productivity gains and reduced integration complexity.

Spatial light modulators are based on liquid crystal microdisplay technology (digital

addressing), using Twisted Nematic Liquid Crystalline Materials, and utilizing the

birefringence effect of twisted nematic liquid crystals ,which enables the precision

modulation of the amplitude, phase and power of the incident beam.

This ability of the precision control to the phase of the wavefront makes spatial light

modulators become ideal choice for applications such as beam shaping and phase

correction, educational research, biomedical imaging, and digital holographic experiments.

Configuration

Use Scenarios

Application in Optical Research Laboratories

In research laboratory environments focused on wavefront engineering and digital holography, the SLM-Spec-PAA380 functions as the primary device for manipulating phase and amplitude of coherent light sources. Its high resolution and 8-bit modulation depth enable detailed phase corrections and beam shaping essential to precision optics experiments. The device’s compatibility with standard HDMI interfaces supports fast data transfer, facilitating integration into existing optical benches and automated control systems maintained by academic and industrial research teams utilizing the expertise of a spatial light modulator manufacturer.

Role in Laser Processing and Optical Communications

The SLM-Spec-PAA380 is integrated into laser processing systems and optical communications testbeds to modulate beam profiles and phase distributions dynamically. Its 5.5π phase modulation capacity at 532 nm wavelength makes it ideal for fine beam control required in photonic device testing and laser fabrication. The device’s reflection coefficient and contrast ratio guarantee stable, repeatable performance compliant with stringent industry standards. This enables system integrators to reduce setup complexity and improve modulation accuracy, showcasing the strengths of a trusted spatial light modulator supplier in high-precision industrial contexts.

FAQ

What interface options are available for the SLM-Spec-PAA380?

We provide the SLM-Spec-PAA380 with an HDMI interface, ensuring easy integration into your optical setups. This standard connection supports high-resolution digital input required for precise control in spatial light modulator applications.

Can you customize the SLM-Spec-PAA380 for specific industrial needs?

Our team can discuss tailored modifications for the SLM spatial light modulator to meet particular requirements. We specialize in adapting hardware and firmware for various research and industrial projects involving beam shaping and wavefront control.

What support do you offer for installation and integration?

We assist clients with detailed technical guidance during installation and system integration to ensure seamless operation of our spatial light modulator products. Our experts provide step-by-step advice for optimal setup in your optical communication or laser processing environments.

How do you ensure the performance and reliability of your spatial light modulators?

We manufacture all devices, including the SLM-Spec-PAA380, using advanced materials and precise LCOS chip technology. Our quality control and in-house expertise guarantee stable phase modulation and contrast ratio, meeting industrial standards for long-term reliability.
