SLM-Spec-OPM-V1BP

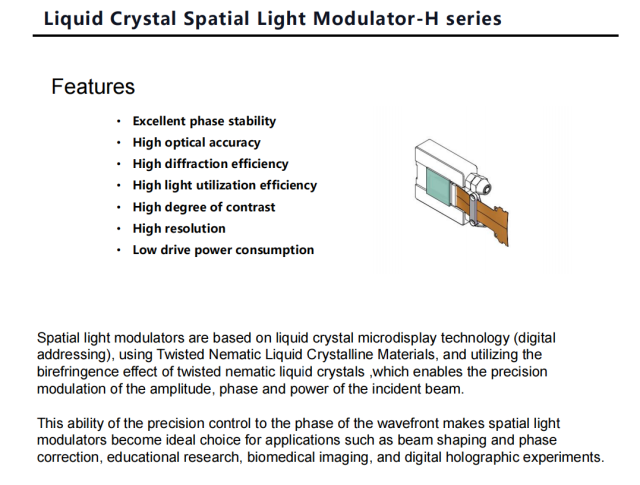

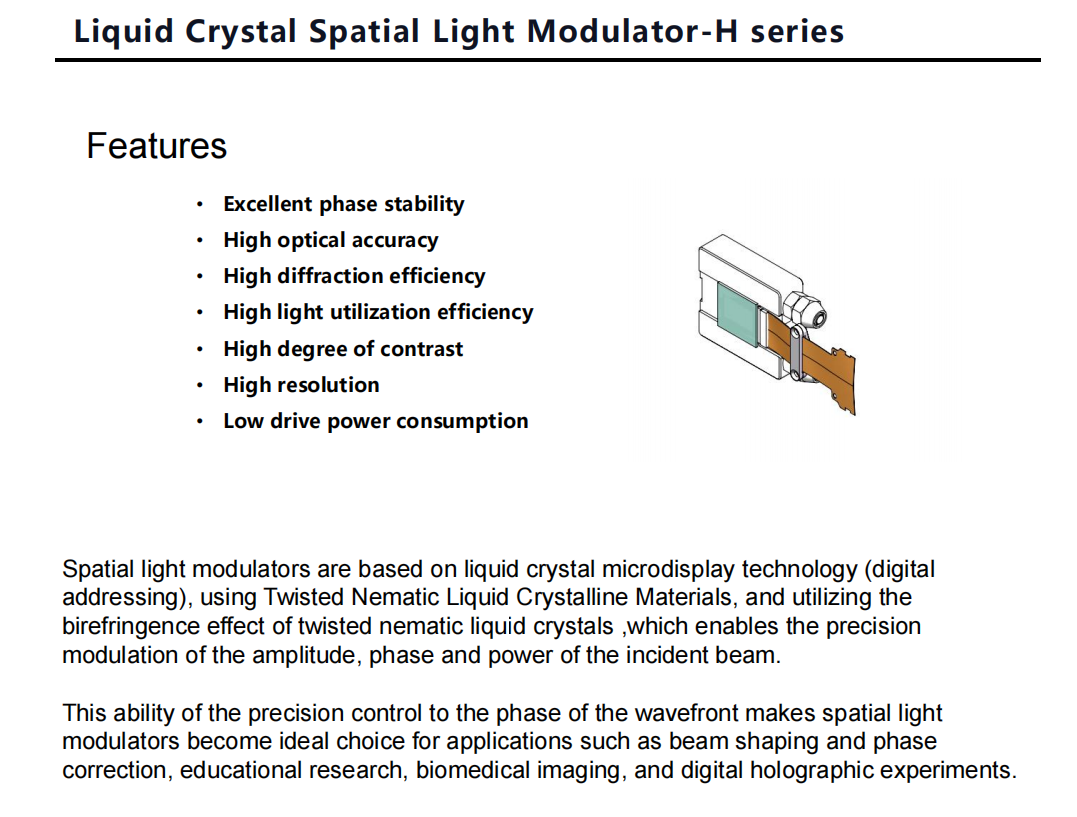

Spatial light modulators are based on liquid crystal microdisplay technology (digital

addressing), using Twisted Nematic Liquid Crystalline Materials, and utilizing the

birefringence effect of twisted nematic liquid crystals ,which enables the precision

modulation of the amplitude, phase and power of the incident beam.

This ability of the precision control to the phase of the wavefront makes spatial light

modulators become ideal choice for applications such as beam shaping and phase

correction, educational research, biomedical imaging, and digital holographic experiments.

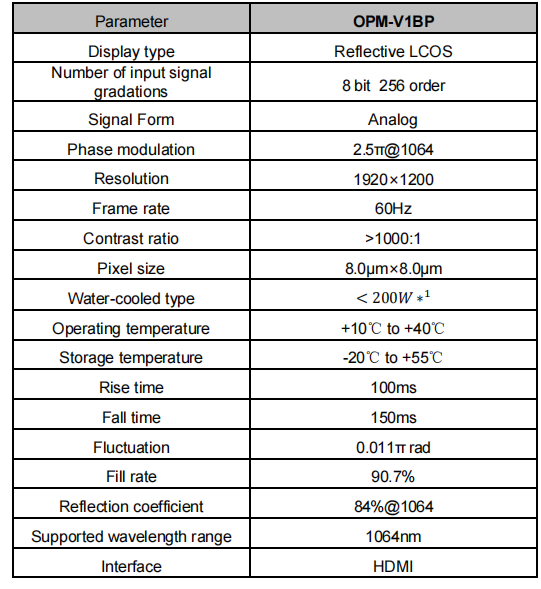

Configuration
