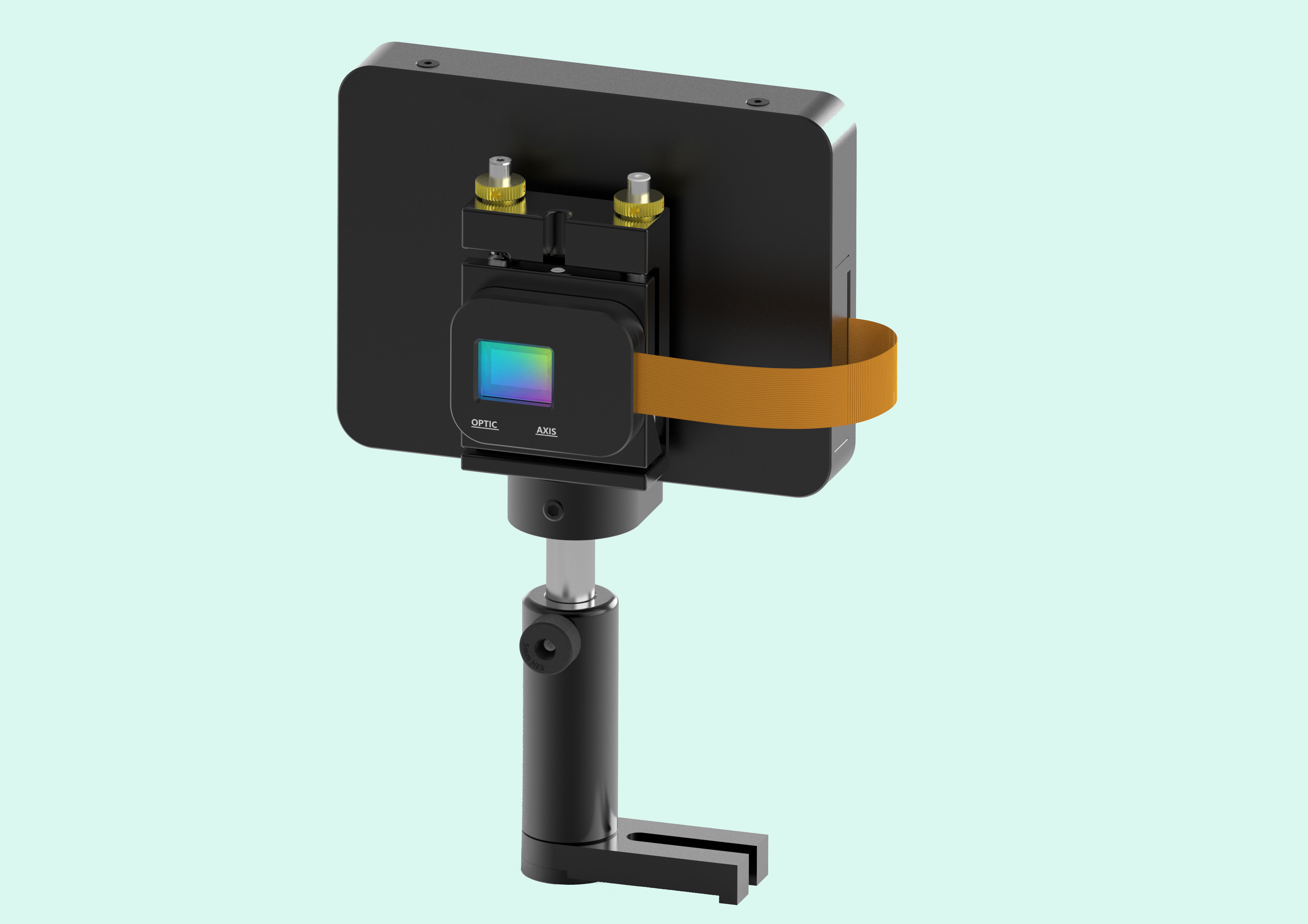

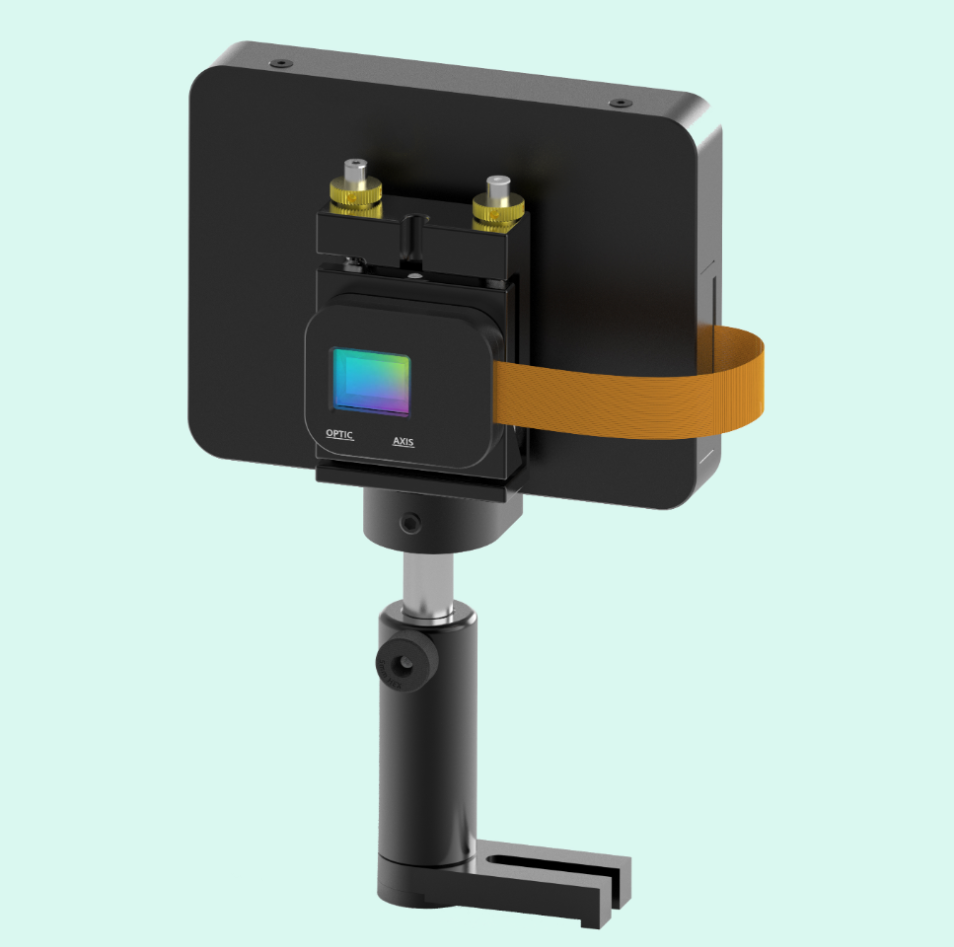

SLM-Spec-PAB380

Product Description

Functional Positioning Tailored for Optical Research and Development

The SLM-Spec-PAB380 is engineered as a precision device for advanced light wavefront manipulation targeted at research laboratories, optical engineers, and academic institutions. As a mature spatial light modulator solution, it enables controlled phase and amplitude modulation through programmable microdisplays. Its emphasis is on integration within experimental setups requiring high resolution and repeatable performance, making it suitable for users focused on beam shaping, phase correction, and digital holography. Provided by a recognized spatial light modulator supplier, this device supports seamless adaptation to complex optical test benches and prototype evaluation environments, addressing the technical demands of experimental photonics and biomedical imaging research.

Core Technical Features and Precise Measurement Specifications

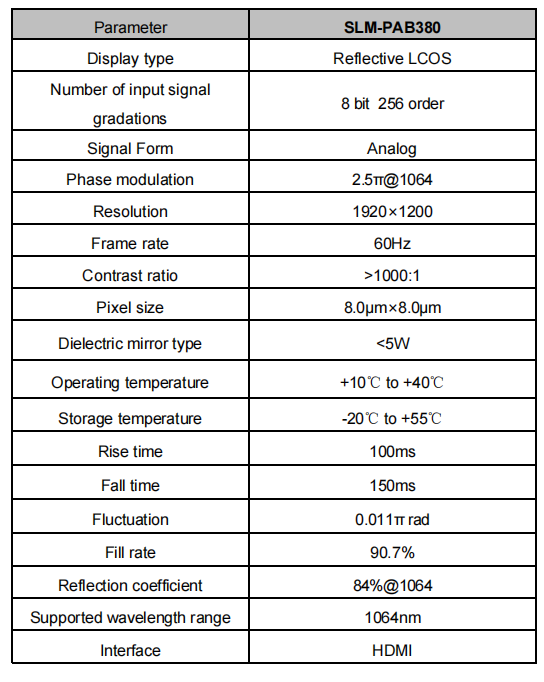

Built upon reflective LCOS technology, the SLM-Spec-PAB380 incorporates twisted nematic liquid crystals with an 8-bit grayscale level, delivering quantifiable phase modulation capabilities up to 2.5π at 1064 nm wavelength. Its high contrast ratio exceeding 1000:1 and full HD resolution of 1920×1200 pixels at a 60 Hz frame rate ensure precise wavefront control. The device offers a low pixel pitch size of 8.0 μm and supports an HDMI interface facilitating digital addressing and ease of control. Additional technical parameters include a reflection coefficient of 84% and a fill rate of over 90%, aligning with stringent standards critical in adaptive optical systems and laser processing validations. These measurable specifications underpin the device’s role as a reliable lcos spatial light modulator for demanding optical applications.

Industry Applications Demonstrating Real-World Value

This SLM solution plays a pivotal role across various sectors including research in adaptive optics, digital holography, biomedical imaging, and laser beam modulation. It supports waveform correction experiments and programmable light-field manipulation, contributing to precise calibration and alignment of optical components. The device’s compatibility with standard interfaces and adaptability in optical communication testing environments makes it an essential tool for engineering teams optimizing beam dynamics and system performance. As an established product from a leading spatial light modulator manufacturer, its application extends to educational setups, laser processing, and optical communications testing, delivering measurable improvements in experiment reproducibility and system integration.

Product Advantages

Modular Design and Integration Strengths

The SLM-Spec-PAB380 features a compact and robust reflective LCOS architecture specifically optimized for modular deployment in optical benches and test systems. Its design incorporates a dielectric mirror type with low power consumption (<5W) and is thermally manageable across a wide operating temperature range (+10℃ to +40℃). The device’s 8-bit analog signal input and digital addressing interface enable straightforward integration with digital control hardware, simplifying system upgrades. Manufactured by a reputable spatial light modulator supplier, this product benefits from in-house hardware and software development, facilitating customized system adaptations and reliable long-term component compatibility within optical instrumentation frameworks.

Performance Reliability and End-User Practicality

Ensuring consistent phase stability with a low fluctuation margin of 0.011π rad, this slm spatial light modulator delivers high contrast and precision in phase modulation essential for rigorous scientific experiments. The HDMI interface supports user-friendly implementation while maintaining high bandwidth signal fidelity for real-time wavefront modulation. Its configurable frame rate and high resolution ensure minimal latency during dynamic beam shaping tasks. Users benefit from repeatable performance metrics and stable device conditions, resulting in streamlined workflow integration and reduced calibration requirements. These performance attributes translate into substantial operational reliability and measurable ROI for optical system developers and research engineers.

Spatial light modulators are based on liquid crystal microdisplay technology (digital

addressing), using Twisted Nematic Liquid Crystalline Materials, and utilizing the

birefringence effect of twisted nematic liquid crystals ,which enables the precision

modulation of the amplitude, phase and power of the incident beam.

This ability of the precision control to the phase of the wavefront makes spatial light

modulators become ideal choice for applications such as beam shaping and phase

correction, educational research, biomedical imaging, and digital holographic experiments.

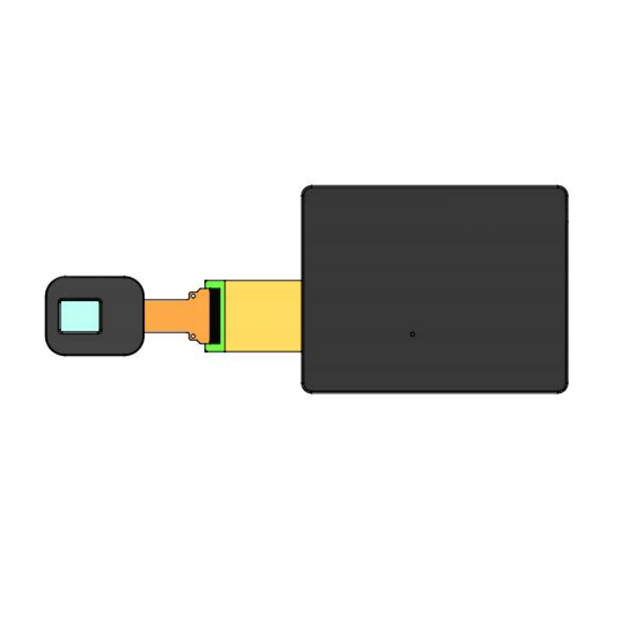

Configuration

Use Scenarios

Adaptive Optics Testing and Wavefront Correction

In optical research laboratories focused on improving imaging resolution and beam quality, the SLM-Spec-PAB380 actively controls wavefront distortions via programmable phase modulation. Operated as part of adaptive optics test setups, this lcos spatial light modulator achieves fine correction of aberrations in laser and microscopy systems. Its precise response and high-resolution control accommodate rapid environmental adjustments and system calibrations. Integration with adaptive feedback loops and optical test benches enables iterative learning and automation, delivering compliance with strict experimental accuracy requirements. By providing programmable and repeatable modulation, it elevates research outcomes in fields such as astronomical imaging and biomedical diagnostics.

Digital Holography Demonstrations and Optical Communication Validation

The device finds essential application in optical communication testing environments and digital holography experiments where complex wavefront synthesis is necessary. Its capability to modulate amplitude and phase with high contrast supports holographic data encoding and laser beam patterning. The spatial light modulator integrates into communication system testing circuits and holography workstations via HDMI, streamlining control during intricate modulation schemes. This facilitates testing of system robustness under encoded signal conditions and improves calibration accuracy for optical components. The modulators’ stable phase characteristics and full HD resolution offer enhanced fidelity in holographic displays and data transmission verification processes.

FAQ

What applications is the SLM-Spec-PAB380 best suited for?

Our SLM-Spec-PAB380, a precision spatial light modulator, is ideal for beam shaping, wavefront correction, holography, and optical system calibration. Designed with programmable phase modulation, it supports diverse experimental and industrial tasks requiring accurate light-field control.

Can I integrate the SLM-Spec-PAB380 with existing optical test setups?

Yes, the SLM-Spec-PAB380 features an HDMI interface for easy integration with common optical test benches. We ensure compatibility with laboratory and proof-of-concept environments, supporting you in leveraging this LCOS-based spatial light modulator for customized optical experiments.

Do you offer customization options for the SLM-Spec-PAB380?

While specific customizations are not detailed on the product page, we encourage you to contact us directly. Our expertise as a trusted spatial light modulator manufacturer allows us to discuss tailored modifications to meet your project’s technical requirements.

What support and maintenance services do you provide for your SLM products?

We back all our devices, including the SLM-Spec-PAB380, with comprehensive technical support from our experienced team. Maintenance guidelines and assistance are available to ensure long-term reliable operation of your spatial light modulator supplier equipment in demanding applications.
